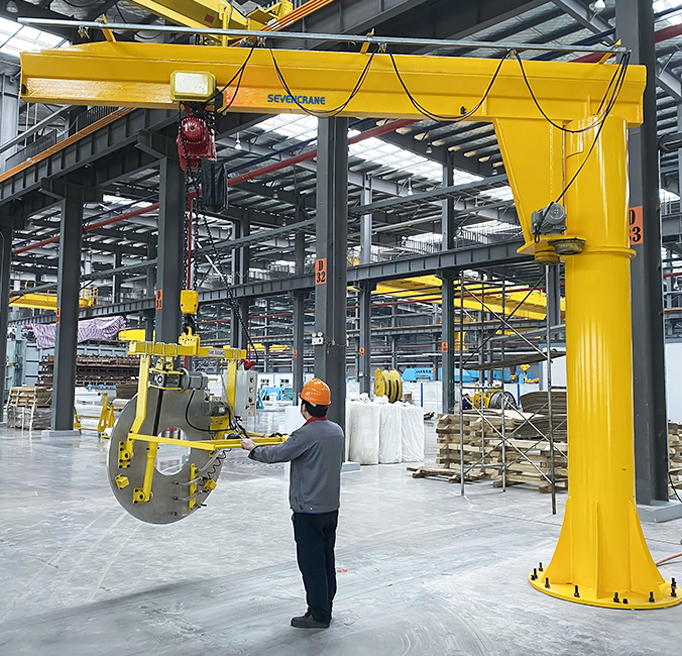

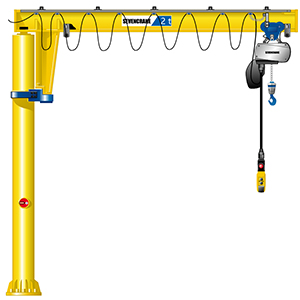

Foundation block with anchor bolts

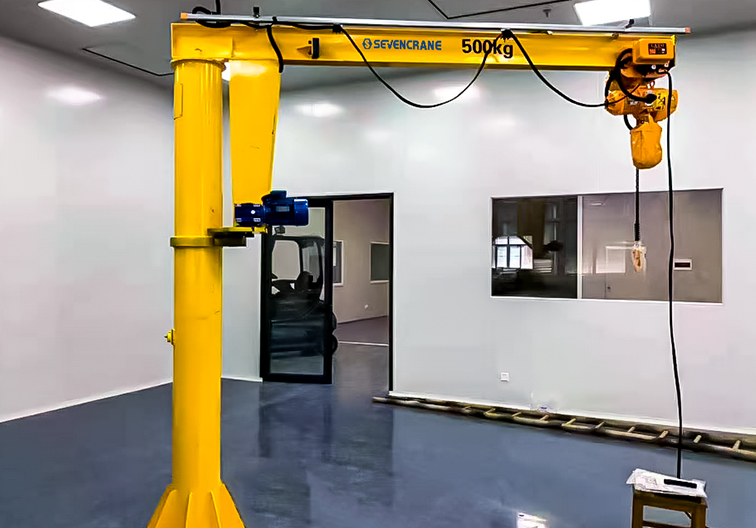

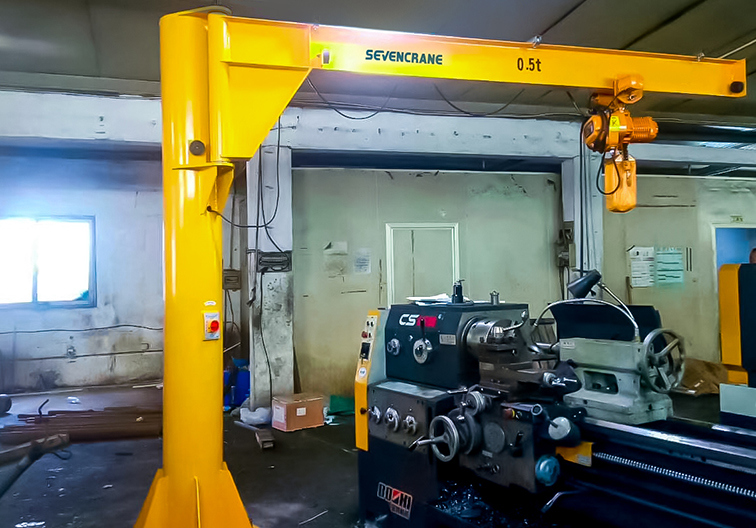

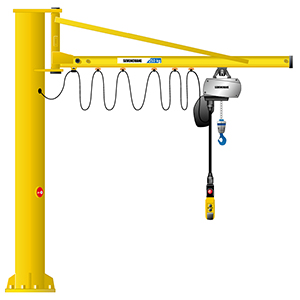

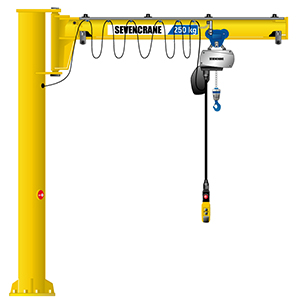

The most commonly requested mounting for pillar jib cranes now involves anchor rods set in a concrete foundation block. SEVENCRANE provides the anchors, a steel template for positioning the anchor box, and guidelines for pouring a reinforced foundation per GB50001-2011.
Foundation with SEVENCRANE ideal anchors
SEVENCRANE ideal anchors provide a smart mounting solution when the crane site needs to remain walkable and drivable. The two-part anchor rods connect via sleeves, which are fush with the foor and covered by caps. When mounting the crane, threaded bolts are screwed into the sleeves.
Intermediate plate on a concrete floor
Using a square intermediate plate, the crane can be mounted on an existing concrete floor. After drilling and chiseling the floor, anchors are inserted and cast. SEVENCRANE provides the plate and optional fioor anchors.
Intermediate plate on a concrete suspended ceiling
Alternatively,the intermediate plate can be mounted to a concrete ceiling using through-wall anchors, SEVENCRANE provides the plate and optional through-wall anchors.
Dowel plate on a concrete floor / a concrete ceiling
Pilar jib cranes with average Safe Working Loads are highly effcient with our dowel mounting system, Using Fischer dowels for dynamic loads,the dowels fit into the countersunk holes of the round plate during installation. SEVENCRANE provides the dowel plate, dowels, and a grouting mold ring.
